Warmset radiant panels are an elegant heating solution consisting of a metal casing, inside which Warmset unique patented technology is installed.
The limited thickness of the radiant element, combined with its optimal adhesion to the conductive metal casing, guarantee excellent heat distribution and optimal energy efficiency, capable of heating indoor areas of up to 8 m2 with a single panel.
The metal structure incorporates Warmset’s patented heating technology, distributing heat evenly across the entire surface of the electric radiant panel. The system operates through direct radiant heating, helping to create a comfortable indoor environment without circulating air or generating unpleasant convective airflow. The metal radiant heating panel operates at 230 V and has a rated power of 400 W. Its standard dimensions are 900 × 600 × 13 mm. With an ambient temperature of 20 °C, the panel reaches an indicative surface temperature of approximately 80–90 °C. The structure consists of a painted metal front surface, the integrated Warmset electric heating system, an internal non-woven thermal insulation layer and an aluminium rear casing.

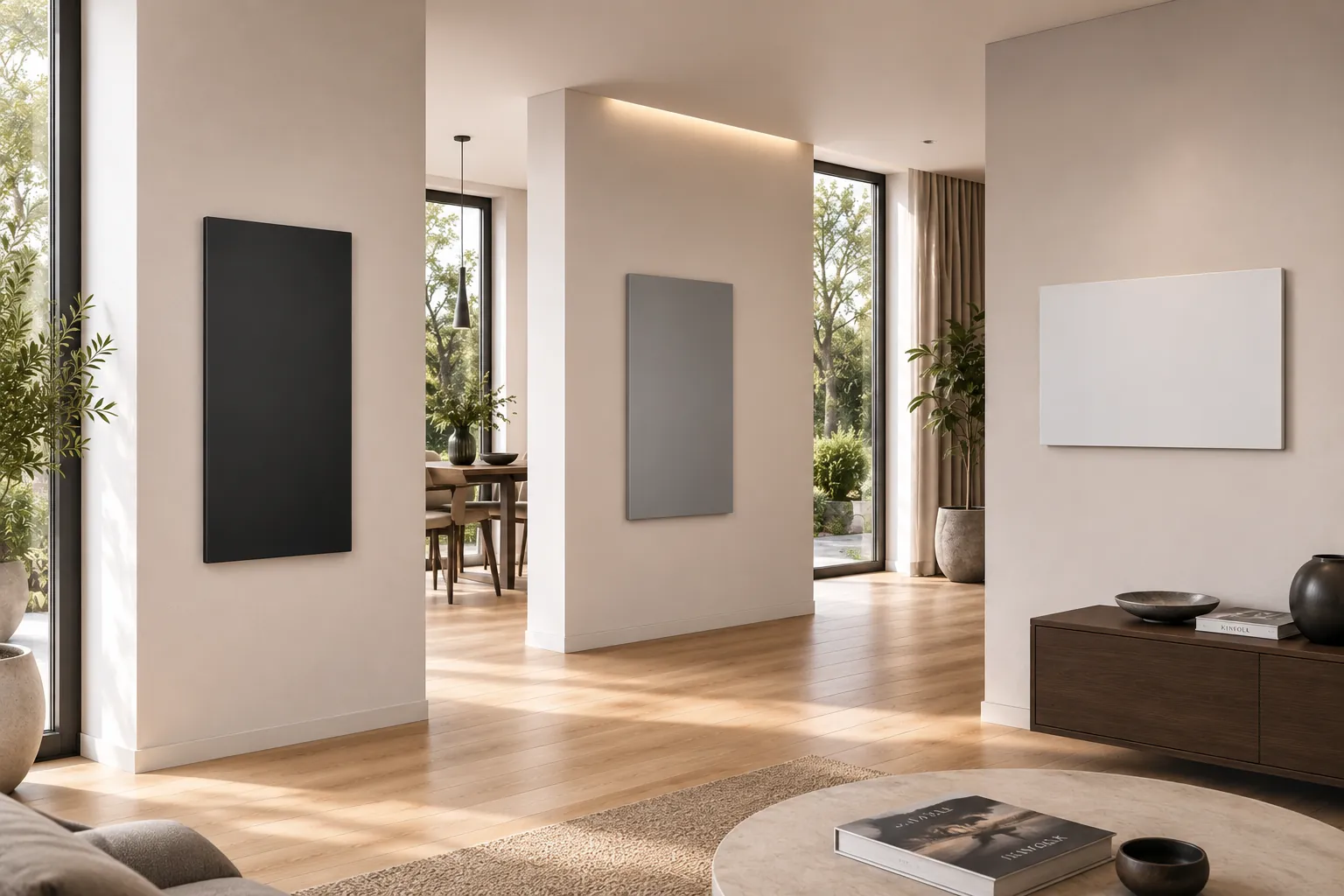

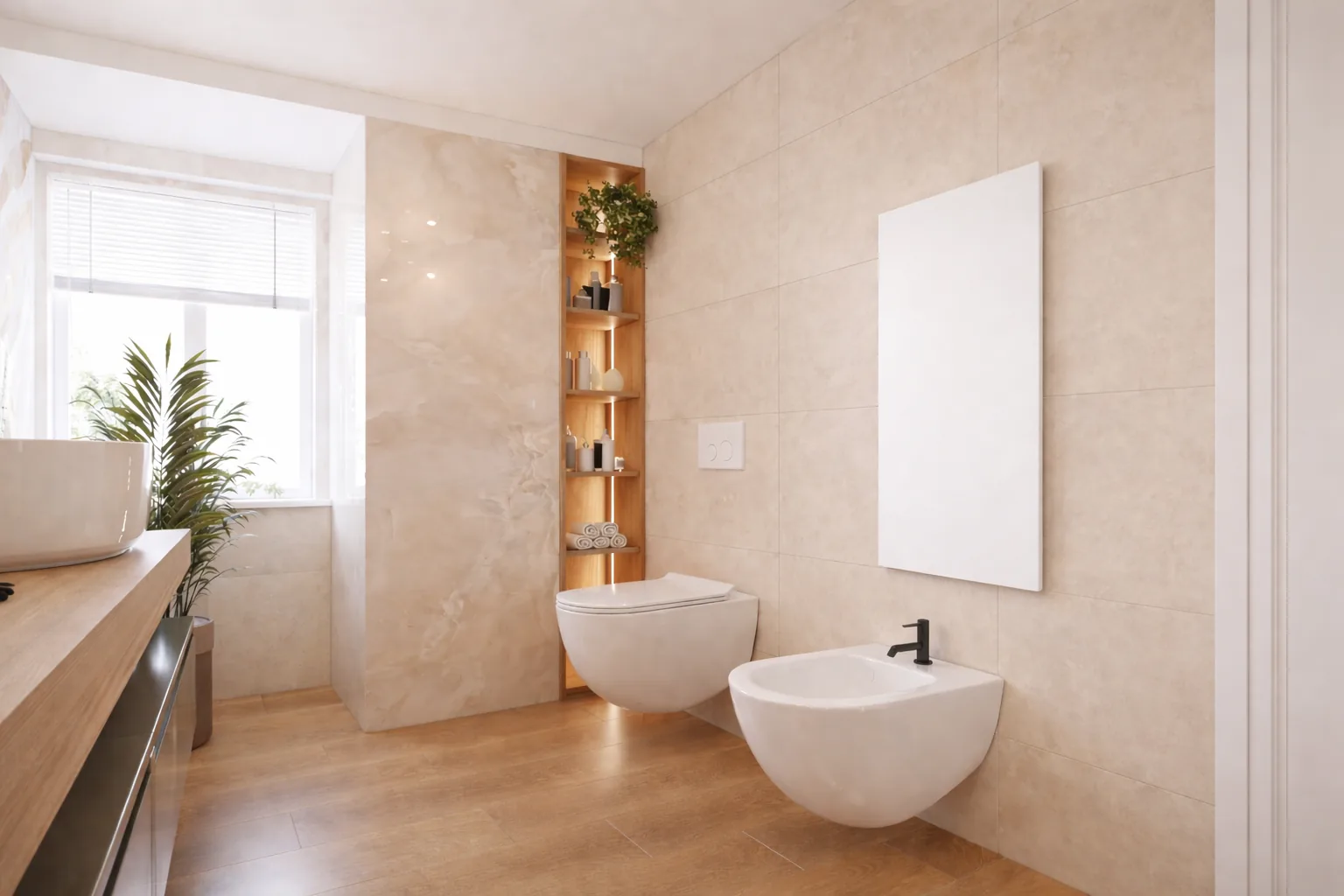

The electric radiant panel is available in white, black and sand finishes, allowing it to blend easily into residential, commercial and professional interiors. Upon request, it can also be supplied with a towel rail, making it particularly suitable as an electric bathroom heating panel or for any environment requiring a functional, discreet and space-saving heating solution.
TEMPERATURE CONTROL

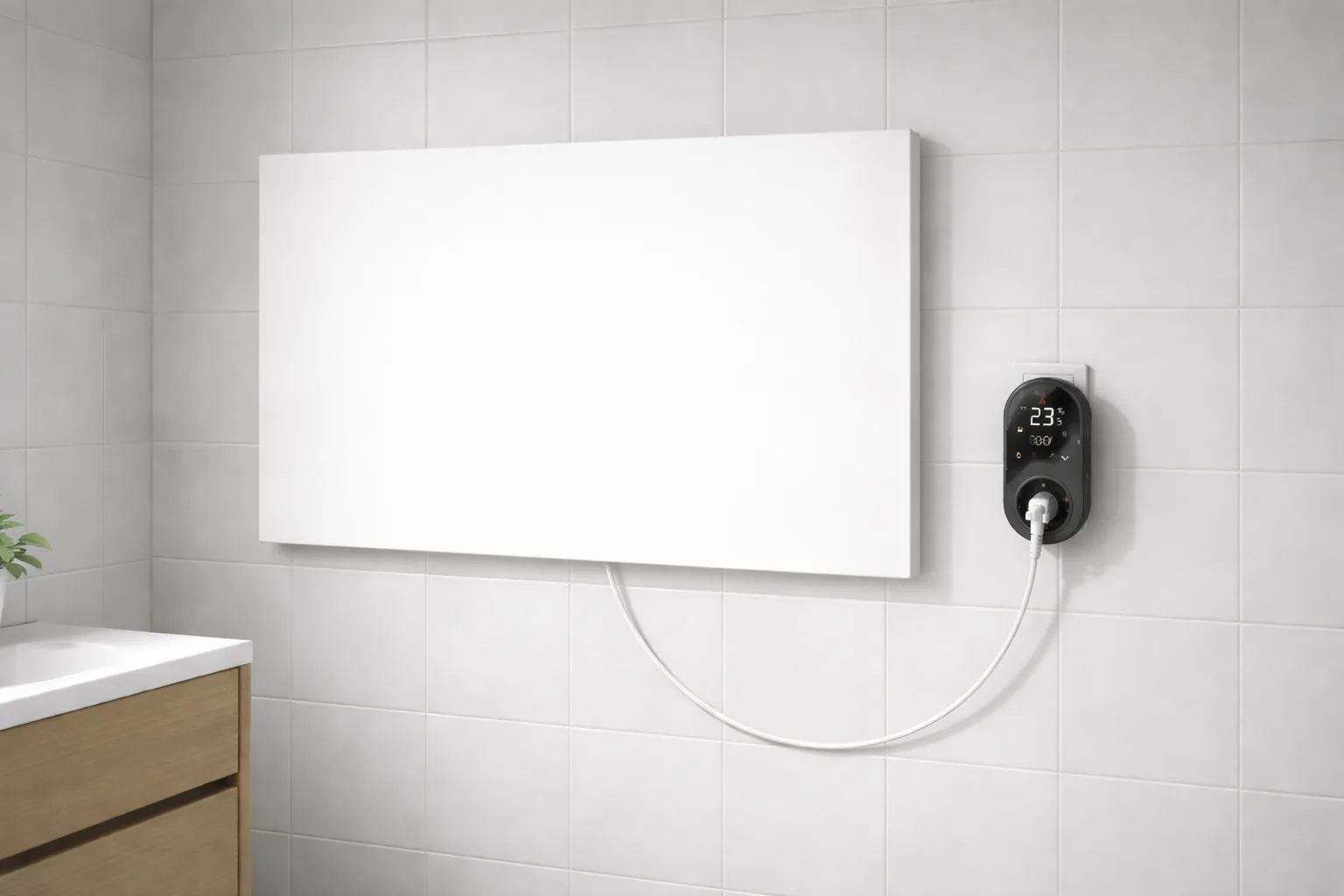

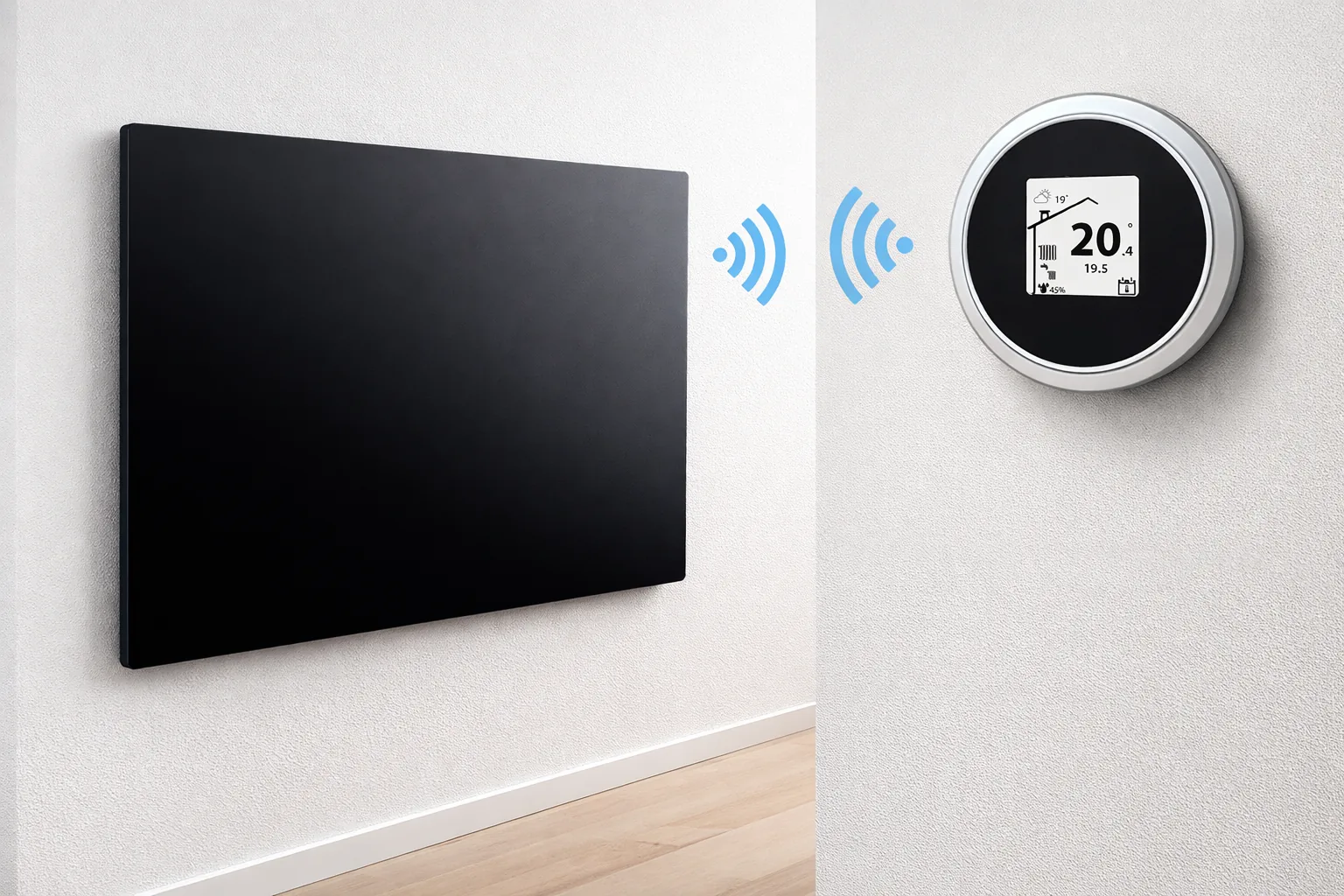

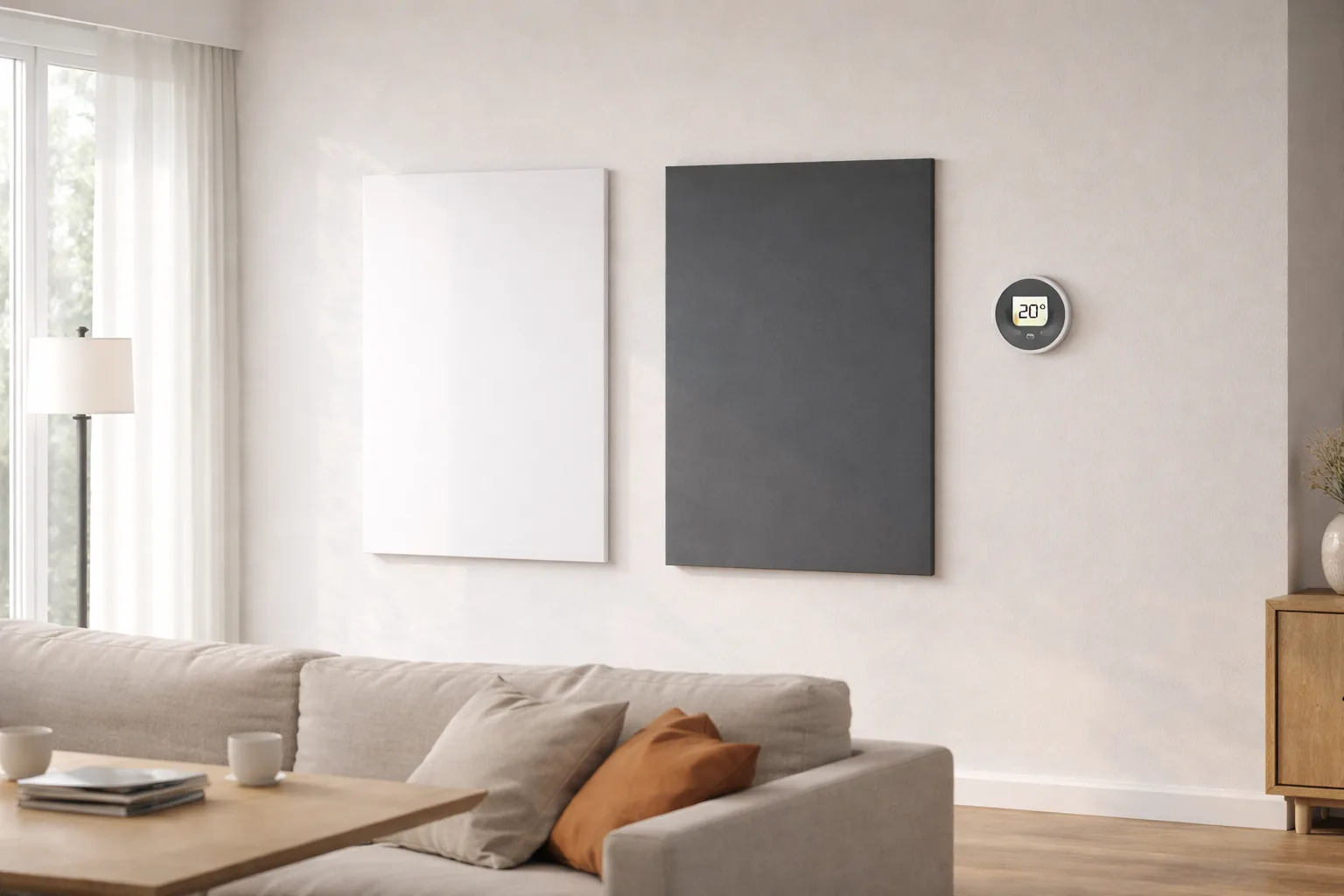

Depending on the selected configuration, the electric radiant panel can be supplied with different temperature control solutions. The standard version is equipped with a Schuko plug for simple ON/OFF operation. In this configuration, the temperature can be managed using an external socket with an integrated thermostat, directly connected to the panel’s power cable. Alternatively, the radiant heating panel can be paired with a dedicated Wi-Fi room thermostat. In this configuration, the thermostat communicates with a relay integrated into the panel and can be installed freely anywhere in the room, regardless of the panel’s position. A single Wi-Fi thermostat can control up to 8 electric radiant heaters, provided they are installed within the same room or heating zone.
Installation Metal designer radiant panels
Learn more about the radiant panel
